MINDBEAGLE FOR ASSESSING AND COMMUNICATING WITH DOC AND LIS PATIENTS

Revolutionizing patient care with reliable assessments of consciousness and command-following abilities, tools for rehabilitation and outcome prediction in patients with disorders of consciousness and locked-in syndrome

LEARN ABOUT PATIENTS' MENTAL STATE

mindBEAGLE uses Brain-Computer Interface (BCI) technology for quick and easy assessment of DOC and LIS patients and even provides basic communication with some of them. It is used to determine whether patients can understand and follow basic task instructions, even though they are diagnosed as people in a vegetative state (VS, also called UWS or Unresponsive Wakefulness Syndrome), minimally conscious state (MCS) or (completely) locked-in state (LIS/CLIS).

The lack of feedback is a huge barrier to medical diagnosis or clarifying the patient’s condition. mindBEAGLE gives physicians, family members or caregivers a broader knowledge of the patient’s perception and consciousness. In the assessment phase, mindBEAGLE will provide reliable information about the command following abilities of a patient. The system also supports a longitudinal screening to investigate stability and improvement of responses or daily changes in awareness. Many of these patients have fluctuations in their command following ability that can be detected with the mindBEAGLE system.

Another challenge is outcome prediction – helping family members and physicians predict the outcome of different treatment options. With the high classification accuracy of mindBEAGLE, we can predict whether and how a patient may improve very accurately.

mindBEAGLE includes 2 functional electrical stimulation channels to train upper and lower limb muscles and reduce spasticity. mindBEAGLE also features 2 transcranial electrical stimulation channels to electrical stimulate the brain. These tools can support rehabilitation and other goals.

PRODUCT HIGHLIGHTS

Assess command following abilities in DOC/LIS patients
Detect fluctuations in command following
Allow patients to answer YES/NO questions
Predict the outcome and possible improvements of patients
Train the patient with the vibro-tactile stimulation protocol
Train the patient with the motor imagery protocol
Perform brain stimulation with transcranial electrical stimulation
Perform muscle re-education with functional electrical stimulation
Acquire resting state EEG

TECHNICAL SPECIFICATIONS

AEP Ultra-precise stereo stimulation
Vibro-tactile EPsVibro-tactile stimulation of up to 7 body parts
Motor imageryMotor movement imagination
Raw dataResting-state analysis
FES2 channels for muscle re-education
TES2 channel transcranial electrical brain stimulation
EEG headset16 channels g.Nautilus PRO flexible with 24 Bit resolution

mindBEAGLE combines important electro-physiological tests that allow us to search for signs of consciousness after coma. The big advantage of mB is that it is integrated. You can take it to any patients and plug them in and get the results directly. It is still a challenge and it doesn’t work with all the patients. mindBEAGLE is a big help for us to use the paradigms as they are implemented in mB for very challenging patients.

Dr. Steven Laureys, Neurologist - FNRS Research Director, Coma Science Group, GIGA-Ulg and CHU Liège, Belgium

AUDITORY EVOKED POTENTIALS

The AEP paradigm is the first one used for testing the cognitive functions of the patients. First of all it shows that the patient is able to hear the instructions and it shows that the patient is able to distinguish low and high tones. This does not show yet that the patient has command following, because the AEP could be produced just by passive listening.

VIBRO-TACTILE EVOKED POTENTIALS

The VEP paradigm allows to test command following in an objective way. We are placing one vibrator on the left hand, one vibrator on the right hand and a couple of vibrators on other positions. Then the system is instructed to patient to count left or right. If the analysis shows a high accuracy we have objectively shown that the patient was able to do the tasks correctly and this proofs command follwoing. In a next setp the VEP principle can be used to answer YES/NO questions. mindBEAGLE offers a training protocol with the VEP paradigm, too.

MOTOR IMAGERY

The motor imagery protocol instructs the patient to imagine left or right hand movement imagination for 8 minutes. This is a standard procedure in physio-therapy and can be used as a training for the patient. Beside that the motor imagery paradigm can be used to answer YES/NO questions or to perform a brain assessment for command following.

BRAIN ASSESSMENT OF COMMAND FOLLOWING

mindBEAGLE uses auditory and vibrotactile stimulation in order to assess a patient’s condition. The auditory awareness is tested by playing sounds with high and low frequencies to the patient. To test the tactile awareness, the patient feels vibrations on the hands, legs and other body parts. During these stimulations, the patient is asked to focus on certain sounds and vibrations. A special EEG-cap measures the brain activity during this procedure. If patients are able to perceive auditory and tactile stimuli, mindBEAGLE will be able to find a statistical relevant brain response and applies machine learning techniques to find the target brain response.

This results in a visualization of the brain response and an accuracy ranging from 0 to 100 %. If the accuracy is high it means that the patient is able to follow the tasks and this means the person has command following. If the accuracy is low the patient is not able to do the task correctly and it means that the patient does not have command following.

DETECTION OF FLUCTUATIONS IN COMMAND FOLLOWING

mindBEAGLE is testing command following with auditory, vibrotactile stimulation and motor imagery protocols. The system is instructing the patient to do certain tasks while the high-quality EEG data is recorded. Each task last between 2.5 – 8 min and collects systematically EEG data. Then the BCI system calculated the accuracy ranging from 0 to 100 % and it is a measure if the patient can do the task correctly.

These accuracy values can be always high, always low or they can fluctuate from one session to another one and can be effectively used to quickly understand if the patient has command following on a certain day. Furthermore, the accuracies can be used as a trending tool for the patient.

BRAIN STIMULATION WITH TRANSCRANIAL ELECTRICAL STIMULATION

mindBEAGLE comes with 2 bipolar tDCS stimulation channels that can be used to electrically stimulate the brain with DC currents. In studies it was shown that a pre-frontal stimulation leads to improvements of the CRS-r in DOC patients.

ACQUIRE RESTING-STATE EEG

mindBEAGLE allows to acquire resting-state EEG which can be read into the g.BSanalyze off-line analysis package for gaining more in sights about the status of the brain.

ANSWER YES/NO QUESTIONS

mindBEAGLE allows a patient to answer YES/NO questions that the operator is asking him. This is done with vibro-tactile stimulations of different body parts and the patent can say YES when he attends to the left hand vibrations and the patient can say NO by attending to left hand stimulations. Normally we are asking 10 known questions and if most of them are correctly answered it is a very objective proof that the patient has command following.

Beside the vibro-tactile stimulation it is possible to use left and right hand movement imaginations to answer the questions. mindBEAGLE only outputs a YES or NO if the machine learning algorithms detects that the answer is certain otherwise the system rejects the answer.

PREDICTION OF OUTCOME

mindBEAGLE is running systematically standardized brain assessment protocols. During these protocols the high-quality EEG data is recorded and analyzed with sophisticated algorithms and machine learning techniques resulting in a classification accuracy. In clinical studies we could show that high accuracies are predicting an improvement of the patient in terms of coma-recovery scale-revised (CRS-r).

This means that with an initial assessment with the auditory or vibro-tactile simulation we can already predict a positive outcome for the patient. This is of course essential information for the family and physician.

SHOP NOW

TRAIN THE PATIENT WITH THE VIBRO-TACTILE STIMULATION PROTOCOL

mindBEAGLE includes a vibro-tactile stimulation protocol that leads to improvements in CRS-r. The patient is instructed via the system to count the vibro-tactile stimulations of the left and right hand which produces an activation of the sensori-motor cortex. The protocol should be repeated for 30 min on 10 consecutive days.

TRAIN THE PATIENT WITH MOTOR IMAGERY PROTOCOL

Motor imagery is a standard therapy used in physio-therapy. mindBEAGLE includes a motor imagery protocol that instructs the patient via the loudspeaker to imagine left or right hand movements. At the same time the limbs are stimulated with vibrations to increase the activation of the sensorimotor cortex. The paradigm is running for 8 minutes.

START CONFIGURATOR

PERFORM MUSCLE RE-EDUCATION WITH FUNCTIONAL ELECTRICAL STIMULATION

mindBEAGLE comes with 2 FES stimulation channels that can be mounted on upper or lower limbs. The stimulation protocol is running for a given time and leads to muscle re-education and a reduction of spasticity.

START CONFIGURATOR

MINDBEAGLE EASILY EXPLAINED

People with complete locked-in syndrome can’t speak, move their hands, or even choose to blink or move their eyes, but the brain is working. Read this article in Frontiers for Young Minds to learn about the communciation paradigm of mindBEAGLE.

READ FULL ARTICLE

INTRODUCTION TO MINDBEAGLE

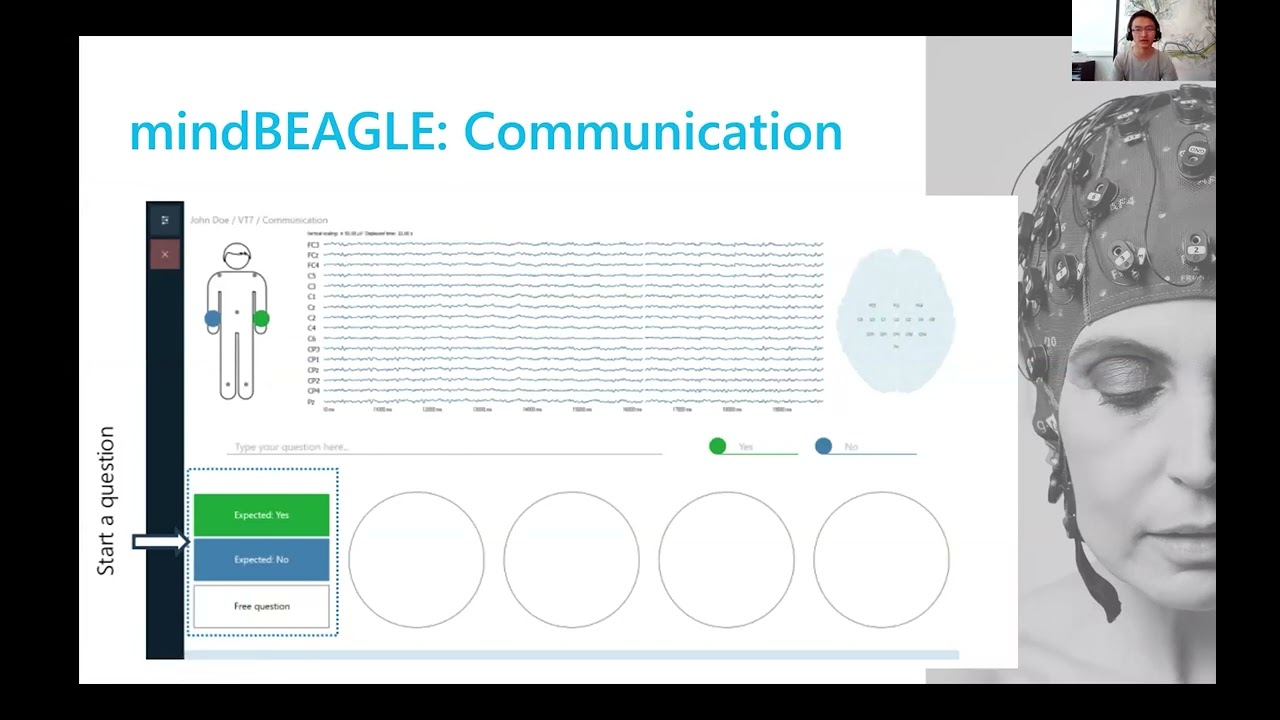

This presentation introduces mindBEAGLE, a brain-computer interface for assessment, communication, prediction, and rehabilitation purposes of patients who suffer from disorders of consciousness and locked-in syndrome. It highlightes how mindBEAGLE facilitates communication and interaction for individuals with severe motor disabilities, while also offering assessment tools and predictive analytics to aid in personalized rehabilitation programs.

COMMUNICATION WITH DOC, LIS, COMA PATIENTS

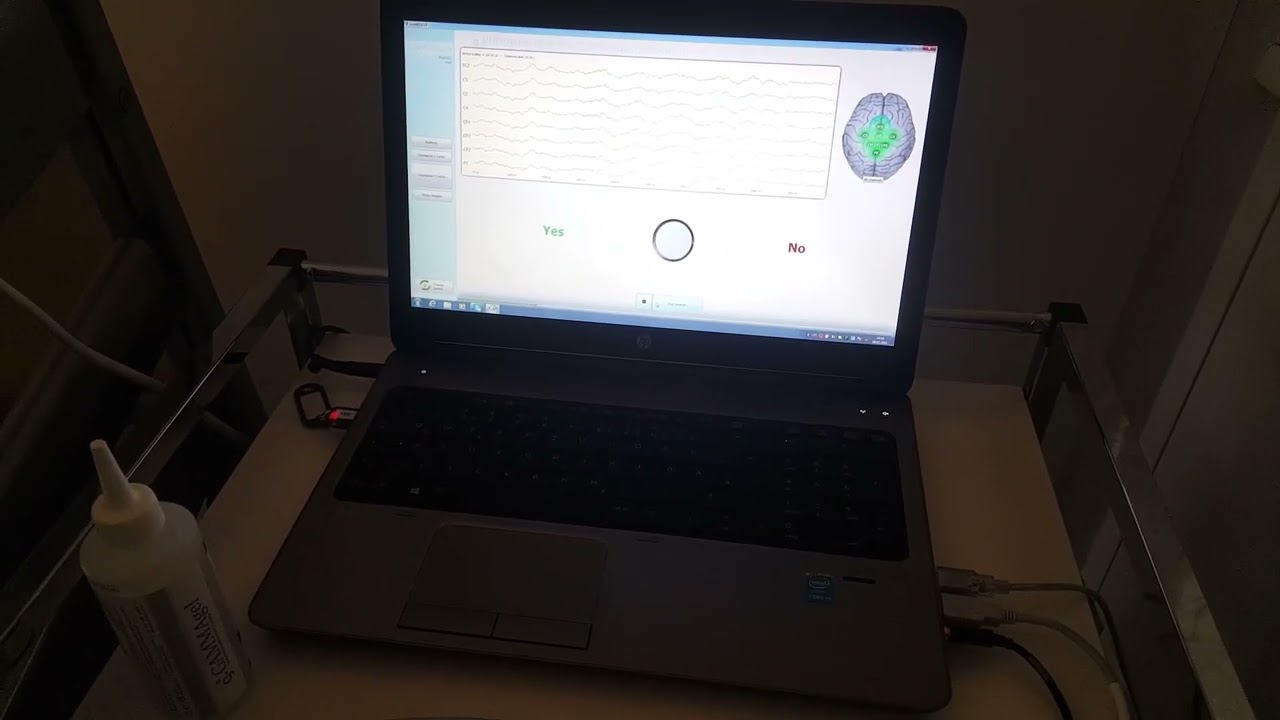

In this video the therapist asks a DOC patient if she is speaking in Italian language. The expected answer is YES. The patient can say YES, by counting little vibrations given to the left hand and can say NO, by counting little vibrations given to the right hand. At the end of the video you can see, that the patient gives the correct answer. Mostly we are asking 5-10 questions and if the patient answers most of them correctly, we get an objective proof of command following.
