cortiQ 2.0 PRO | Rapid Cortical Mapping System | g.tec medical engineering

cortiQ offers an innovative approach to brain mapping, specifically designed for use with epilepsy and brain tumor patients. By leveraging electrocorticographic (ECoG) activity, cortiQ identifies functional brain areas activated during tasks such as motor movements or speech production. cortiQ offers an enhanced surgical precision and safety for neurologists and neurosurgeons to accurately localize eloquent brain areas, providing crucial information for surgical resection. This minimizes the risk of neurological deficits, ensuring safer outcomes for patients.

  1. High-Gamma Mapping (CQ): cortiQ 2.0 performs high-gamma mapping to identify key brain regions using the CQ module.
  2. Electrical Stimulation (ECS): The identified regions are then stimulated using the ECS module
  3. Cortico-Cortical Evoked Potentials (CCEP): Identify brain networks by simply stimulating pairs of electrodes.
  4. Somatosensory Evoked Potentials (SEP): Quickly identify the central sulcus.

This process significantly reduces mapping time, decreases after-discharges and seizures, improves precision, and ultimately enhances survival times for tumor patients.

  1. CQ: High-gamma mapping with ECoG or stereo-EEG
  2. ECS: Electrical cortical stimulation with up to 15 mA
  3. Z: Impedance measurement of ECoG grids and depth electrodes
  4. DECS: Direct electrocortical stimulation with a hand-held probe
  5. CCEP: Cortico-cortical evoked potentials (research mode)
  6. SEP: Somatosensory evoked potentials (research mode)

Experience the future of brain mapping with cortiQ 2.0, where cutting-edge technology meets unparalleled precision and safety in neurosurgical procedures.

PRODUCT HIGHLIGHTS

Real-time brain mapping in the operating room or neuro monitoring unit
Integration of high-gamma mapping and ECS in one device
Integrated CCEP and central sulcus mapping module
Integrated impedance check for ECoG and stereo-EEG
Minimize hospital time and costs
Rapid mapping procedure
Customizable for individual surgical needs
Optimize surgical procedures
Reduce risks for patients
Can be used in very young patients, too
FDA cleared and CE123 certified medical product

TECHNICAL SPECIFICATIONS

ADC24 Bit, one per channel
ECoG channels, stereo-EEG channels64, 128 or 256
Oversampling614.14 kHz to 2.4 kHz
Anti-aliasingUltra-steep in 2 co-processors

Passive high-gamma mapping represents a physiologically elegant and clinically relevant paradigm shift for identifying essential cortical functions.

Anthony Ritaccio, PhD, MD - Mayo Clinic, Florida, USA

I use ECoG electrodes for real-time brain mappings to find and interpret functional activity in the brain at the bed-side, and during awake craniotomy for brain surgery. I can reduce electrical cortical stimulations (ECS) to minimize related seizures and shorten clinical examinations. Otherwise, I would miss an opportunity to improve existing brain mapping procedures and learn the bigger picture.

Kyousuke Kamada, PhD, MD - Hokashin Group Megumin Hospital, Sapporo, Japan

cortiQ mapping is based on passive recordings and statistical evaluations of ECoG, rather than on active electrical stimulation and visual observation of behavior. It can be used to map motor, expres­sive or receptive language, and other functions, and has been shown to have good concordance to results from other imaging techniques. Brain mapping can be achieved in minutes with adults or children, and performed in the extra­operative or intraoperative scenario.

Dr. Christoph Guger - g.tec medical engineering GmbH

DIAGNOSIS: EPILEPSY OR BRAIN TUMOR

Epilepsy is a common neurological disorder that affects a large portion of the world population. Many of the affected people can control epileptic seizures with the use of medication, but for around 15–20% of this population, medication is not effective, and some of these patients choose surgery. Brain cancer is another reason for brain surgery. There are various types of brain tumors, and the aim of the surgery is to remove the tumor (or at least parts of it).

BRAIN ANALYSIS: ECS AND FMRI

Functional brain mapping of the cortex is an essential step when planning resective brain surgeries. Mapping techniques like electrical cortical stimulation (ECS) and functional magnetic resonance imaging (fMRI) are well-established in clinical practice. However, these procedures have disadvantages, since ECS is time consuming, can trigger seizures, and fMRI is not always reliable.

BRAIN ANALYSIS: ECOG AND STEREO EEG

A passive brain mapping procedure based on electrocorticographic (ECoG) signals is a fast and precise mapping technique without the risk of causing pain or seizures. ECoG has repeatedly demonstrated that it can accurately identify cortical regions related to receptive and expressive language functions, motor functions and the somatosensory system in the brain. Afterwards, these locations can quickly be confrimed with the built in ECS module. For that reasons, g.tec medical engineering developed the cortiQ rapid cortical mapping system.

CORTIQ - THE NEW WAY OF BRAIN MAPPING BEFORE OR DURING SURGERY

cortiQ is a new rapid functional mapping technique of the cortex using the Electrocorticogram (EcoG) for patients who suffer from epilepsy with intractable seizure disorders or brain tumors. cortiQ helps surgeons identify functional brain regions with high-gamma activity before surgical resection. cortiQ maps the brain regions related to a certain task that the patient is performing. Neurosurgeons will be able to use and modify cortiQ paradigms based on individual surgical needs. coriQ procudes after 3-5 minutes the mapping result. The next step is to confirm these locations with the built in ECS module. cortiQ allows to select automatically or manually the eletrode pairs that should be stimulated.

BRAIN MAPPING WITH ELECTROCORTICOGRAPHY

For example, if pathological tissue is close to the motor area, cortiQ will ask the patient to move arms, feet or even lips. The brain activity patterns produced during these movements will be transmitted in real-time to cortiQ, notifying the neurosurgeon what parts are important for a certain movement and therefore should remain untouched.

START CONFIGURATOR

CORTICAL MAPPINGS IN THE OPERATING ROOM

After successful implantation of cortiQ ECoG electrodes, there are two ways of how to perform the brain mapping: intra-operative or bedside. These two approaches open many more opportunities with a minimal risk for the patient. A brand new feature of cortiQ is the real-time 3D visualization of brain activity.

WATCH THE VIDEO

HOW IT WORKS

Unlike ECS, cortiQ does not produce artificial seizures and cannot produce pain. However, ECS might be required in some cases.

Therefore, cortiQ can identify neural areas that are “active” in a task decided by the surgeon and thereby provide a fast pre-screening mechanism that might be used for optimized ECS mapping and surgical removal of affected tissue.

START CONFIGURATOR

STEP BY STEP

  • During brain surgery, invasive electrode grids are placed on the cortex or are inserted into the brain covering the specific areas that need to be mapped.
  • The central sulcus is identified with the SEP module
  • The patient performs preprogrammed tasks, e.g. moving limbs, listening to a story, calculating or speaking, which support the neurosurgeon to get a better understanding of the individual functional regions of the brain.

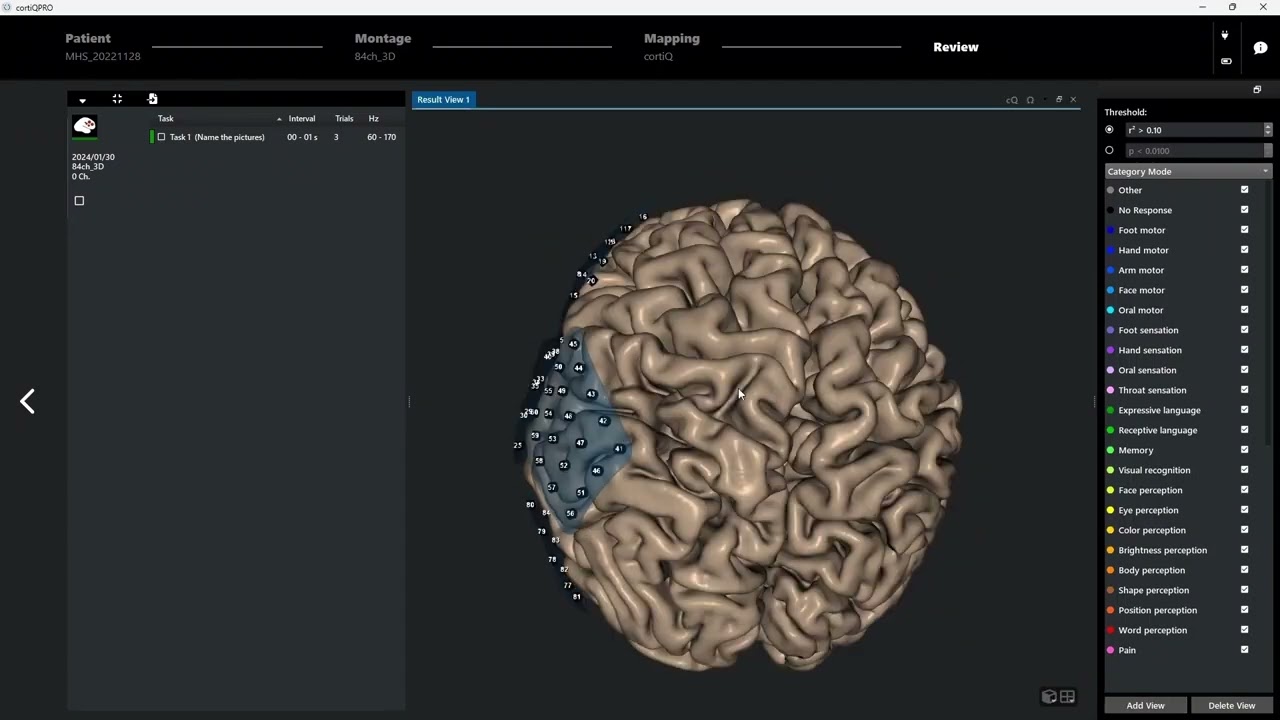

  • cortiQ creates a real-time mapping of the brain, showing what brain areas are active during a specific task.
  • ECS is used to confirm the mapping result
  • Cortical networks are identified with the CCEP module
  • Finally, brain surgery can be prepared and performed safely in record time and with reduced costs.

TEMPORAL DYNAMICS IN THE BRAIN RECORDED WITH CORTIQ

The video shows the temporal dynamics of cortiQ mapping. As soon as the patient sees the instruction the temporal base is activated and few seconds later the motor cortex, the auditory cortex and Wernicke’s area show the functional regions.

START CONFIGURATOR

USE CASE: AWAKE SURGERY

The awake surgery case is critical in time. First, a craniotomy is performed to implant the electrodes. Then functional real-time mappings are performed just before the brain tissue resection. Validation with ECS must be done during the surgery.

USE CASE: BEDSIDE

The bedside case usually requires two surgeries. In the first surgery, electrodes will be implanted and functional real-time mappings are performed at the bedside. Validation with ECS can be done at the beside, too. In the second surgery, electrodes will be removed and the affected brain tissue will be resected.

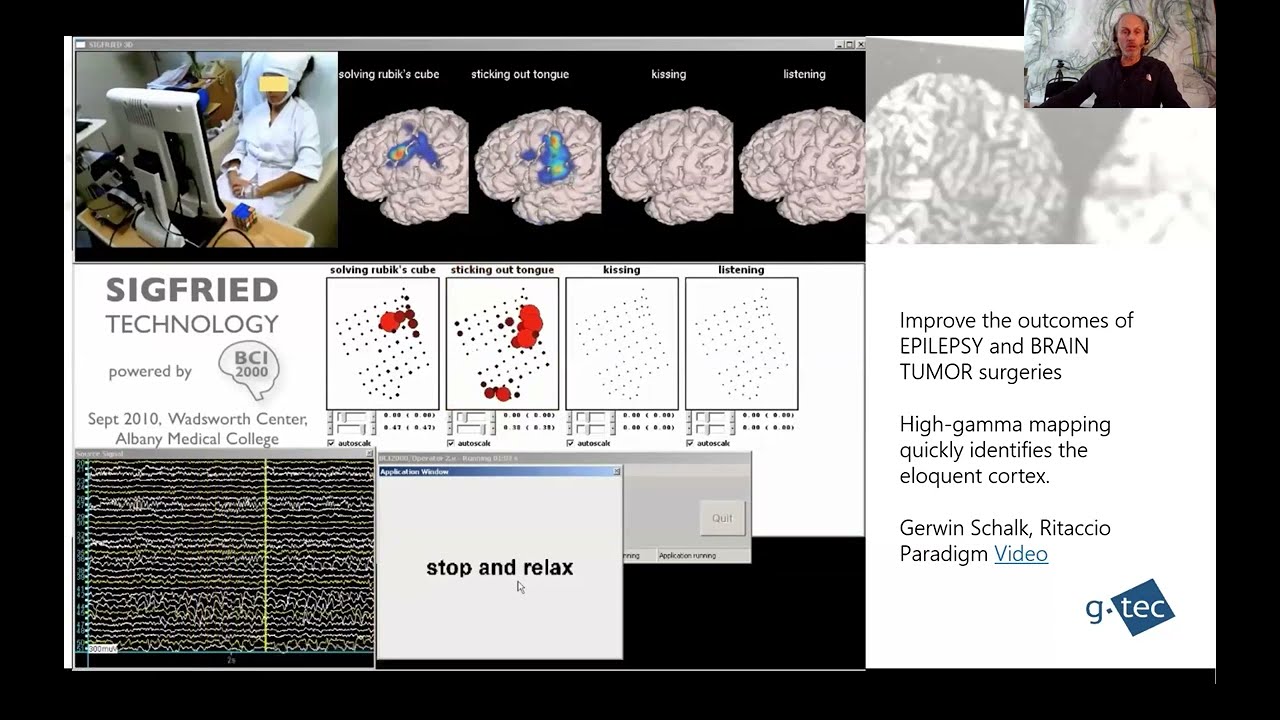

CORTIQ 2.0 - HIGH GAMMA MAPPING MODE

This cutting-edge feature revolutionizes how we understand and interact with brain activity during surgical procedures for tumor and epilepsy patients. Here’s how it works:

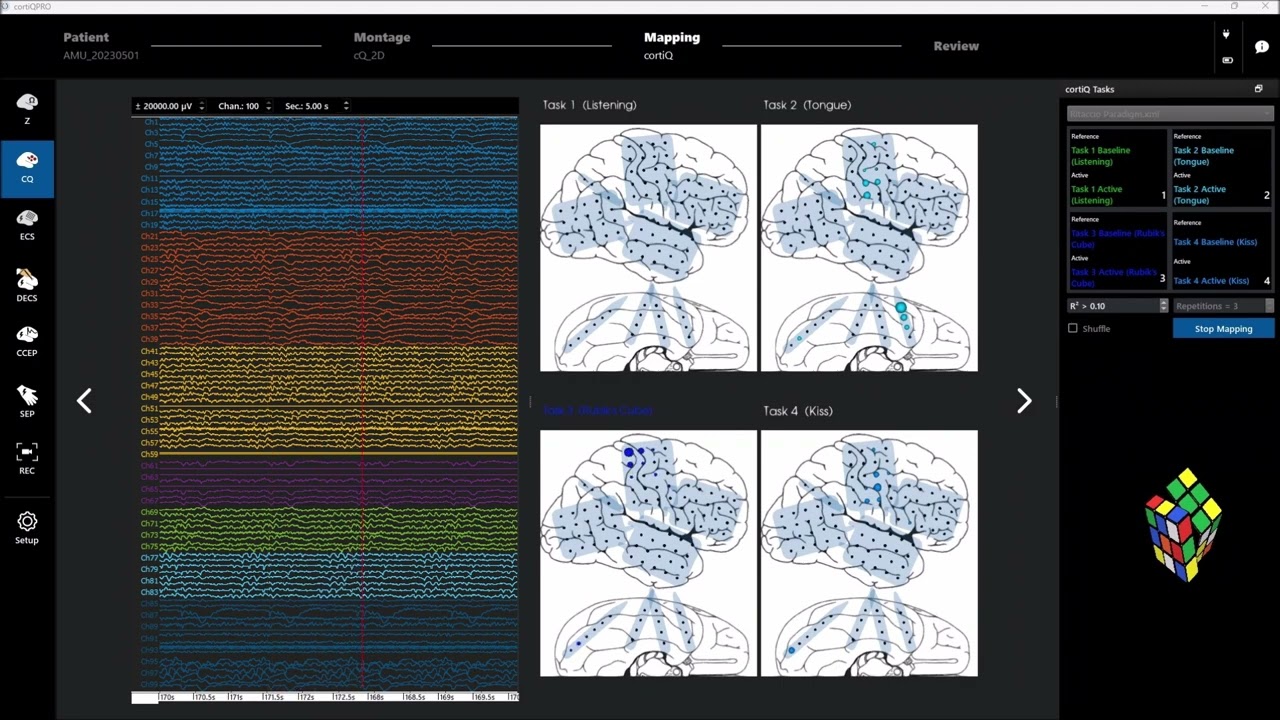

  • Interactive Engagement: Patients solve a Rubik’s Cube to activate specific brain regions, particularly the finger region, for precise mapping.

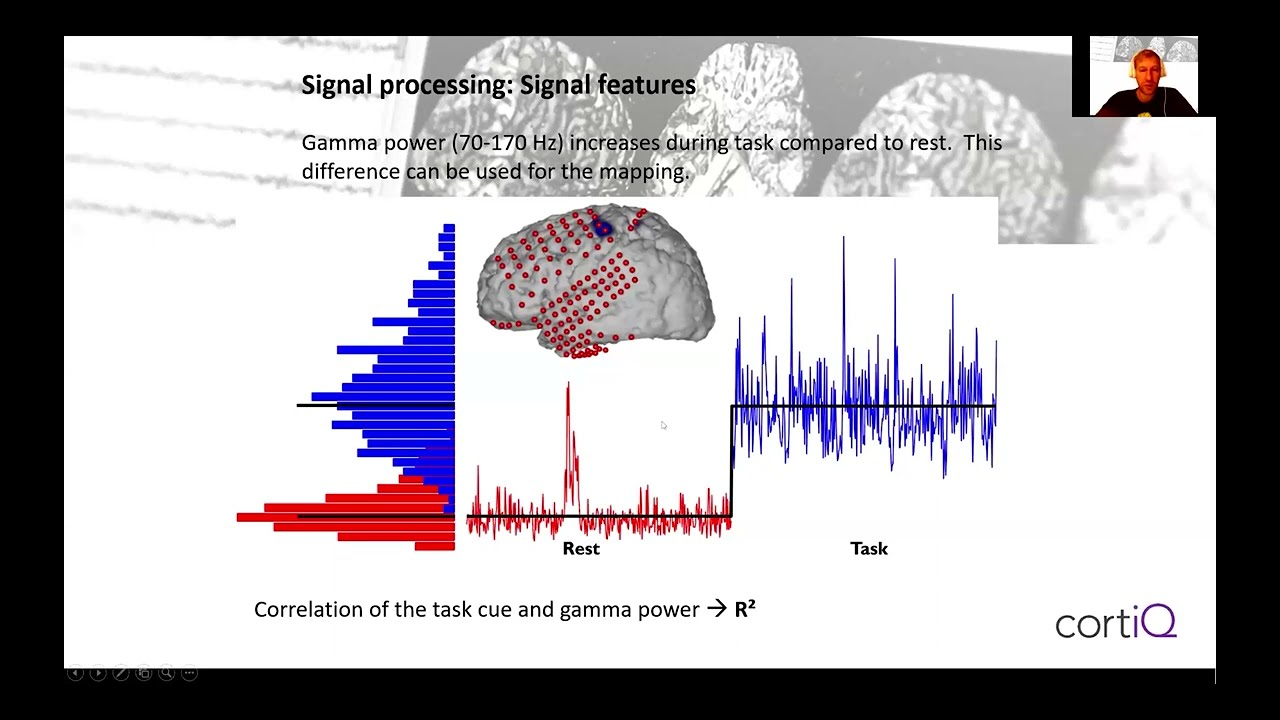

  • High-Gamma Signal Extraction: cortiQ extracts high-gamma signals, providing real-time brain activity insights.
  • Precise Activation Mapping: Activation is mapped onto the cortex, with dark blue bubbles for Rubik’s Cube movements, light blue for kissing, turquoise for tongue, and green for language processing.
  • Structured Task Execution: Each 10-second task is followed by a resting symbol, with tasks available in multiple languages.
  • Robust Mapping: Tasks are repeated three times, with each cycle taking about 3 minutes, ensuring accuracy.

CORTIQ 2.0 - ELECTRICAL CURRENT STIMULATION

Step 1: cortiQ 2.0 performs high-gamma mapping. Step 2: The identified regions undergo electrical stimulation with the ECS module.

This leads to significantly reduced mapping time, fewer after-discharges and seizures, improved precision, and ultimately longer survival times for tumor patients.In the video, the patient is prompted to name pictures while the high-gamma mapping analysis is underway. This process identifies the visual cortex as the patient views images and the expressive language area when the patient names objects. The results are visually represented with bubbles overlaying corresponding cortical regions. Subsequently, the neurosurgeon or neurologist selects electrode pairs for electrical cortical stimulation. The current can be adjusted up to 15 mA.

During expressive language mapping, if electrical stimulation inhibits the patient’s ability to name objects, it confirms the high-gamma mapping results. Following this, the user can label the ECS annotation as “expressive language,” visually denoted by a green line in the mapping result. The video effectively illustrates the overlapping results of high-gamma mapping and ECS, highlighting the efficiency of the procedure.

CORTIQ 2.0 - PARADIGM EDITOR

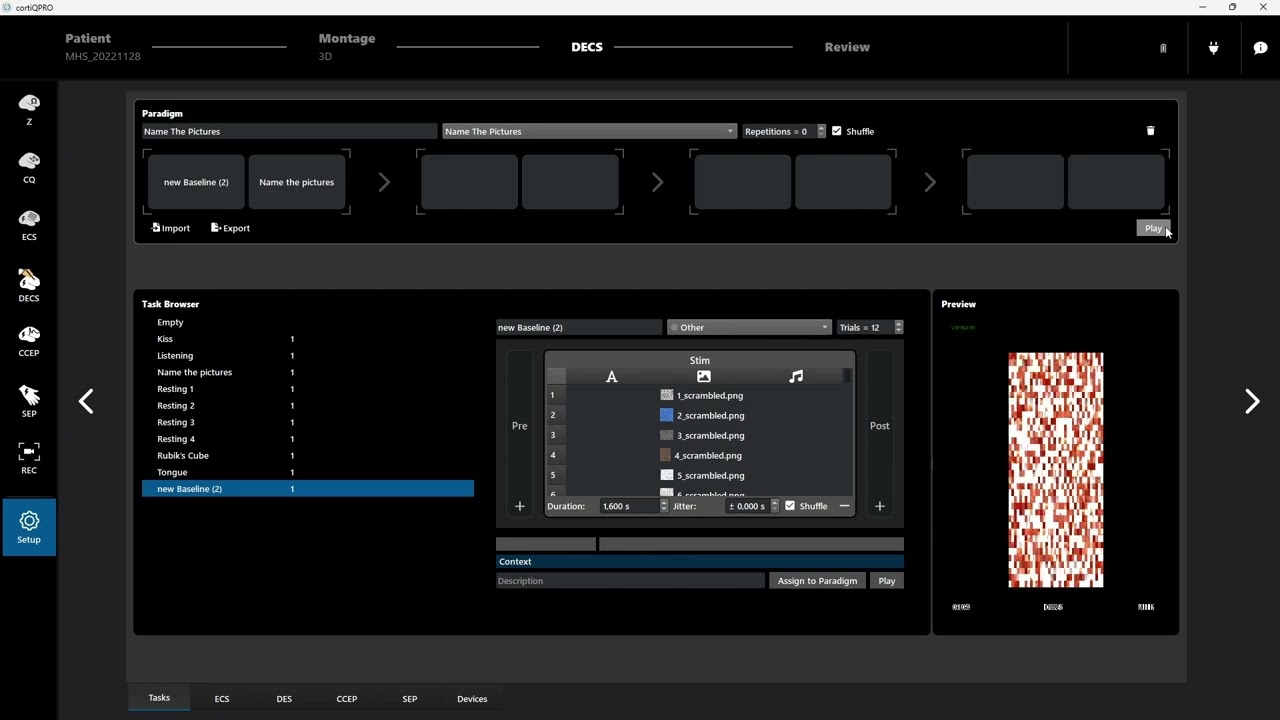

cortiQ 2.0 allows you to set up your own experimental paradigm. The video demonstrates an expressive language mapping paradigm configuration, using scrambled images to record baseline activation versus real images that need to be named. The scrambled and real images are matched for color intensity.

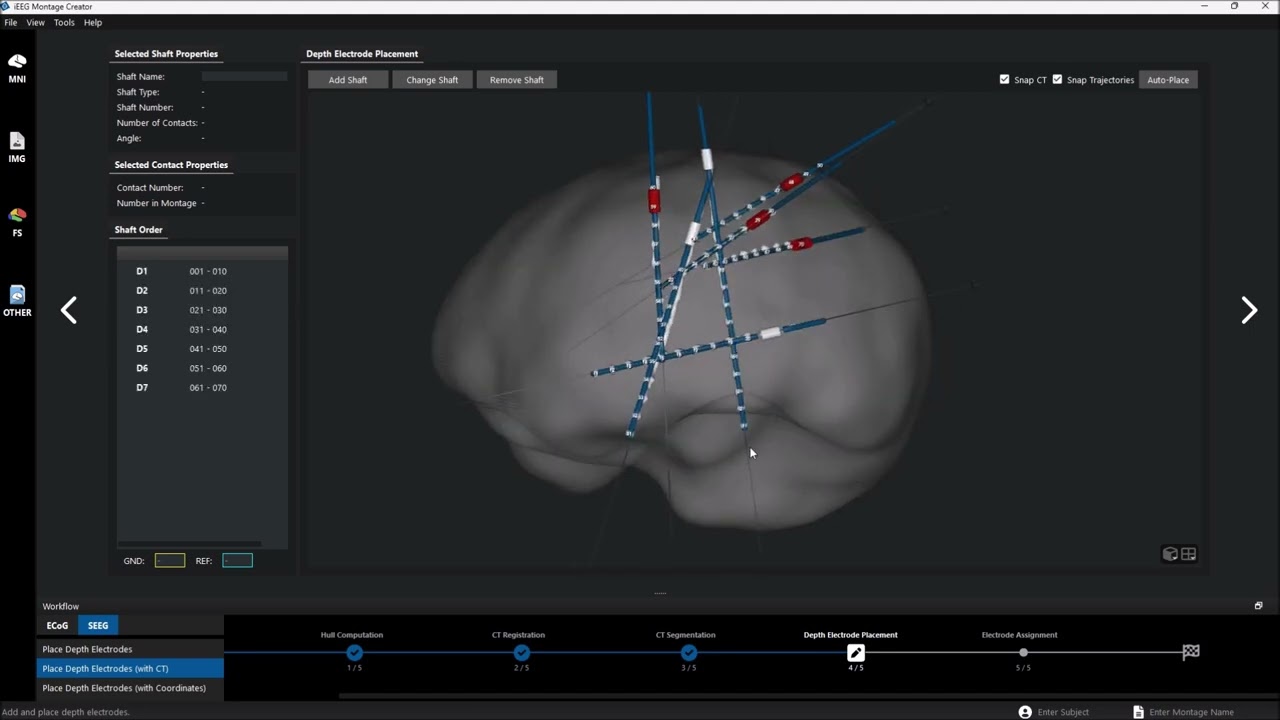

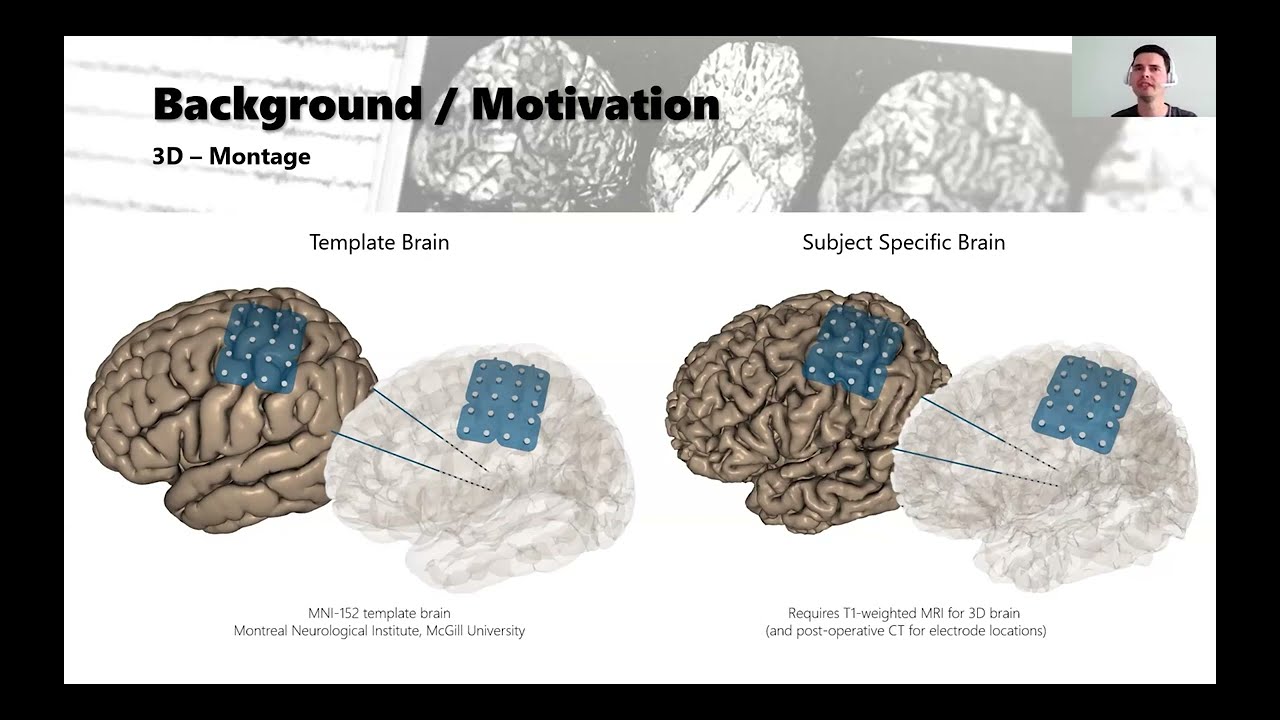

CORTIQ 2.0 - AUTO-SNAP STEREO-EEG ELECTRODES WITH CT IMAGES

cortiQ 2.0 simplifies the process of high-gamma mapping with its user-friendly features. Begin by loading the patient’s CT image, then select the Auto-Select option. Choose the specific stereo-EEG electrode, and the iEEG Montage Creator will automatically place the electrodes. You can then fine-tune the electrode locations using the editor function and start your high-gamma mapping with cortiQ 2.0.

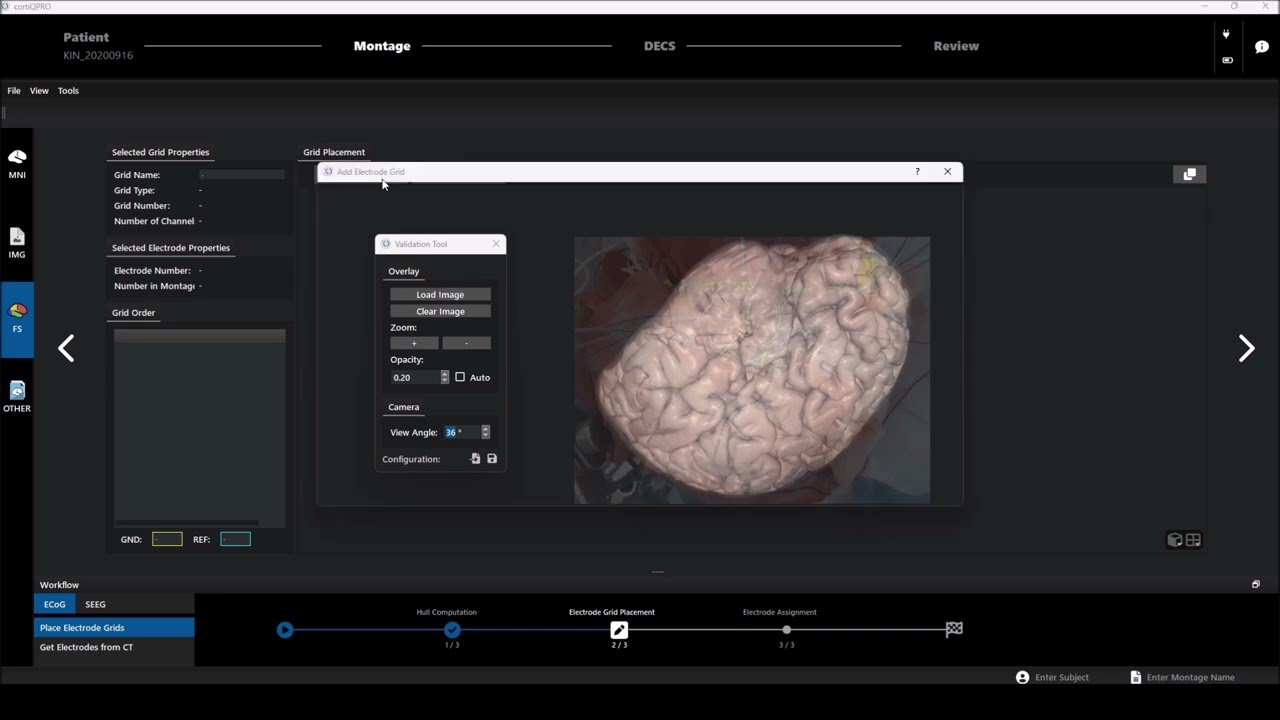

CORTIQ 2.0 - ELECTRODE GRID PLACEMENT

The ECoG grids can be selected from a library and placed by drag-and-drop over the corresponding cortical regions. The key is to position them precisely onto landmarks provided by the underlying picture. Afterwards, the grids are projected onto a 3D mesh of the cortex. In the next step, the patient is instructed to perform certain tasks, while the high-gamma signal is statistically evaluated to indicate cortical regions responsible for the task.

CORTIQ 2.0 - EXPRESSIVE LANGUAGE MAPPING

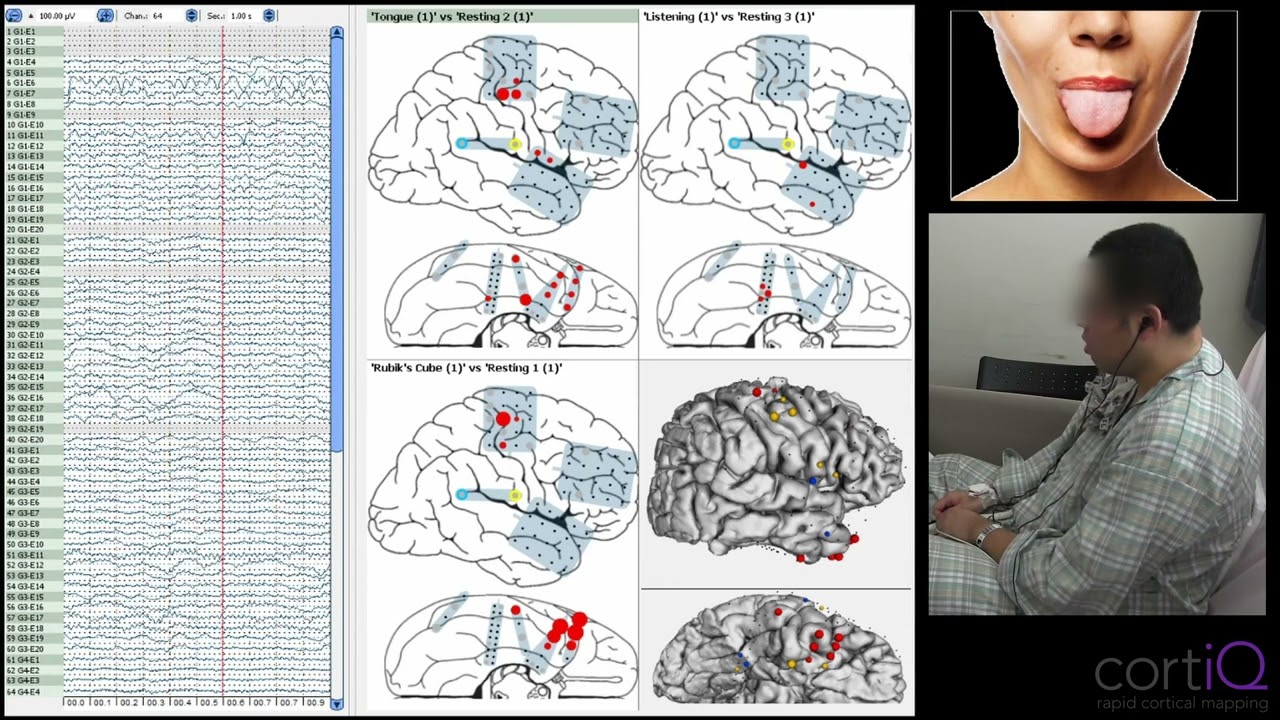

On the left, the ECoG signals from four cortical grids are displayed. The patient’s task is to quickly name the pictures shown on the screen. In the background, cortiQ performs high-gamma mapping to identify the expressive language region. The video impressively illustrates the temporal dynamics. Initially, the patient observes various objects, activating the temporal base. Here, shapes, colors, black and white images, symbols, or even faces are decoded. Shortly after, Broca’s area is activated, immediately appearing as a bubble.

CORTIQ 2.0 - IMPEDANCE CHECK

Measuring impedance of ECoG grids, strips, or stereo-EEG electrodes is a method to assess the quality of contact between channels and brain tissue. However, safety concerns often lead to its omission. cortiQ 2.0 addresses these concerns by integrating safe and controlled impedance measurement features. It uses minimal current, conducts measurements quickly, and displays results for all electrodes simultaneously.

Understanding electrode quality is crucial since common source derivations like common average reference, which incorporate all electrodes, can average noise from faulty electrodes, degrading data quality. Many clinical systems cannot disable this reference, hindering individual channel data assessment. cortiQ 2.0 prioritizes data quality by using impedance measurements to ensure optimal grid attachment intraoperatively. For implanted grids, it identifies and excludes problematic channels, significantly enhancing mapping precision.

CCEP MAPPING OF THE WHOLE CORTEX

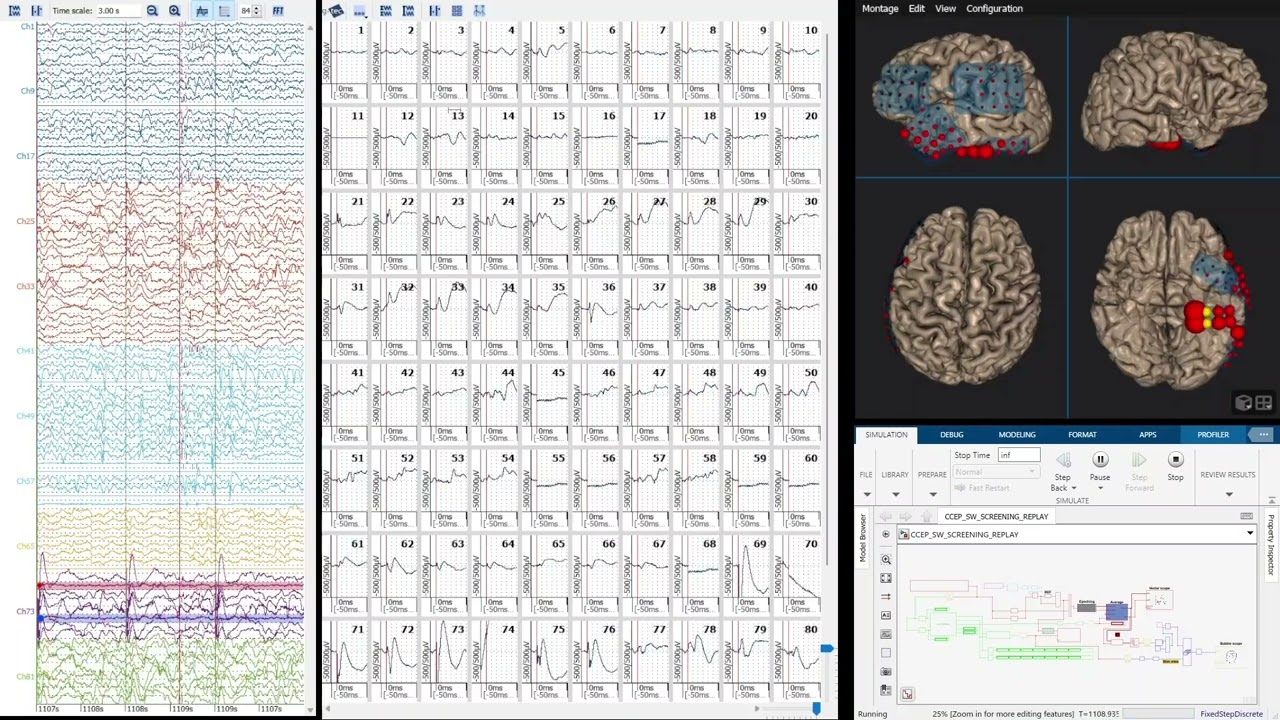

CCEP mapping of the whole cortex in 60 minutes involves automatically selecting yellow electrode pairs to stimulate corresponding cortical regions and induce cortico-cortical evoked potentials (CCEPs). The left panel shows raw ECoG recordings from four grids, the middle panel displays evoked potentials with visible N1 components if an electrode reacts to stimulation, and the right panel features a bubble scope highlighting statistically significant N1 RMS responses in red. Red bubbles near the stimulation electrode indicate artifacts, while remote electrodes identify cortical networks. Conducted with Kyousuke Kamada in an epilepsy patient, this experiment maps networks like the language network by stimulating Broca’s area to locate motor-mouth region, Wernicke’s area, and auditory cortex. Identifying pathological CCEPs is crucial for interrupting seizure pathways during neurosurgery.

READ FULL ARTICLE

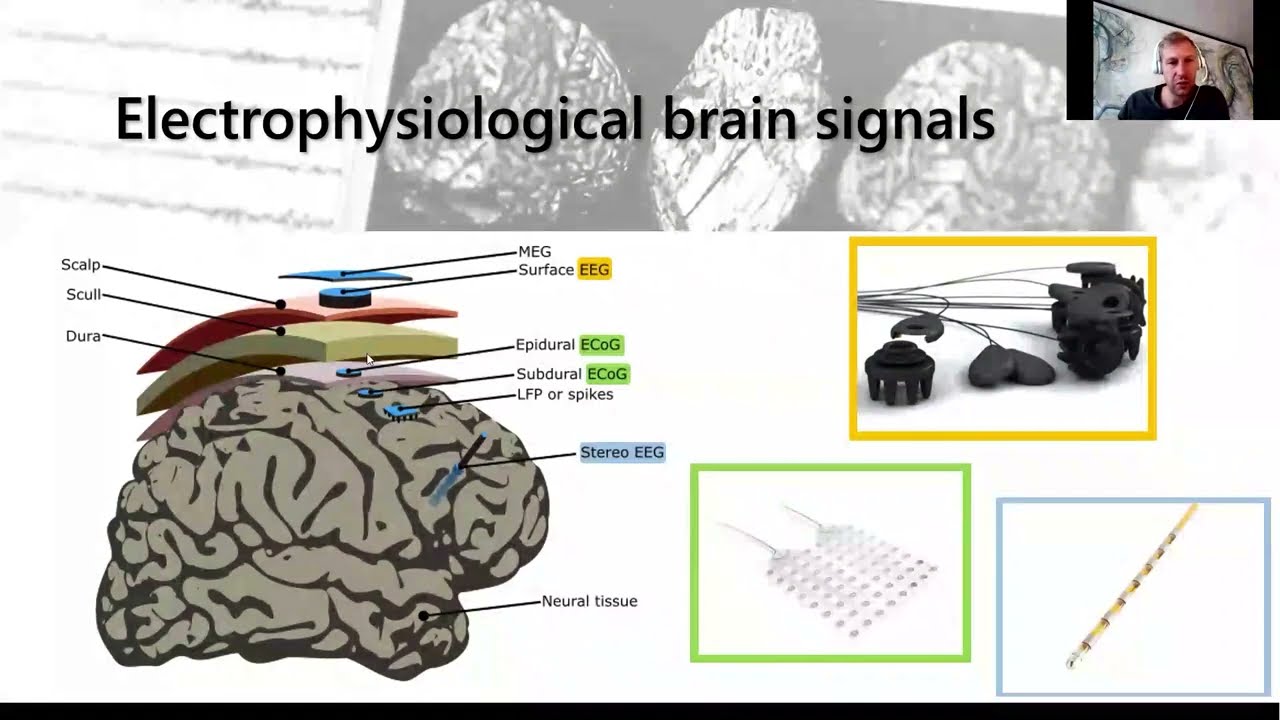

ECoG AND STEREO-EEG FOR BCI

This presentation was recorded during the BCI and Neurotech Spring School 2024 and is about the hardware and software requirements that you need when considering an ECoG or stereo-EEG based Brain Computer Interface.

WATCH ON YOUTUBE

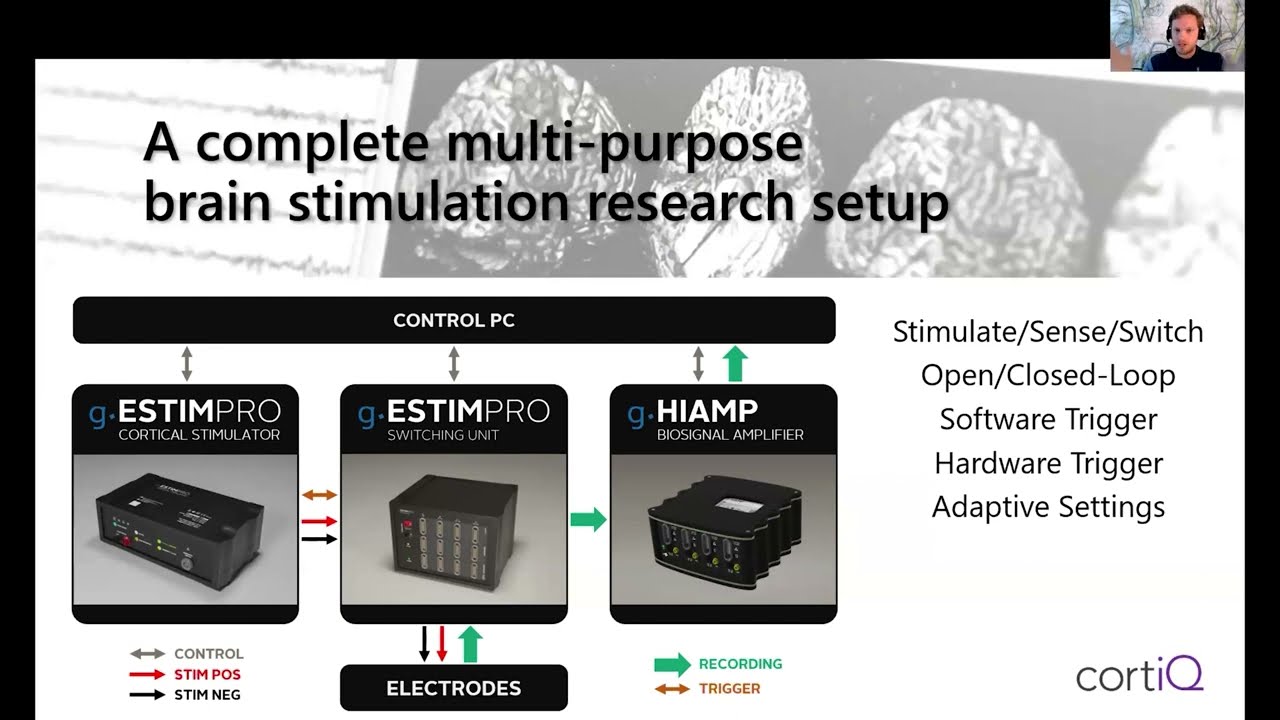

NEUROMODULATION: OPTIMIZING OPEN-/CLOSED-LOOP BRAIN STIMULATION PROCEDURES

In this presentation, you’ll learn how open-loop neuromodulation involves predetermined stimulation parameters delivered without real-time adjustment based on feedback from the patient’s neural activity, offering consistent but potentially less adaptable treatment. In contrast, closed-loop neuromodulation systems continually monitor neural signals and adjust stimulation parameters in real time, providing personalized and adaptive therapy tailored to the patient’s changing needs, potentially enhancing efficacy and minimizing side effects.

LEARN MORE

EPILEPSY RESEARCH: COMBINING MEG, EEG & ECOG

This presentation showcases the convergence of MEG, EEG, and ECoG techniques in epilepsy research. With expertise and precision, Milena Korostenskaja demonstrated the seamless integration of these modalities. Witness firsthand the innovative approach shaping the future of epilepsy research, as Korostenskaja’s lecture sheds light on the synergy between multiple neuroimaging techniques, offering invaluable insights for researchers and clinicians alike.

WATCH THE VIDEO ON YOUTUBE

HIGH-FREQUENCY OSCILLATIONS AND 3D MAPPING

In this presentation, you’ll see the utilization of high-frequency oscillations (HFOs) and three-dimensional mapping techniques in the analysis of grids and stereo EEG data. It highlightes the importance of HFOs as potential biomarkers for epileptic activity and emphasized the benefits of three-dimensional mapping in accurately localizing brain regions involved in epileptogenic activity, aiding in the diagnosis and treatment of epilepsy.

CORTIQ 2.0 - RUNNING FUNCTIONAL MAPPING PROCEDURES IN REAL-TIME WITH ULTRA-HIGH-GAMMA

The talk demonstrates the capability of running functional mapping procedures in real-time using high (ultra)-gamma frequency bands. It showcases how real-time analysis of high-frequency neural activity can provide valuable insights into brain function, enabling more precise and efficient mapping of eloquent cortex areas during neurosurgical procedures and advancing our understanding of neural dynamics in various cognitive processes.

FUNCTIONAL MAPPING WITH ECOG AND CORTICO-CORTICAL EVOKED POTENTIALS

This presentation highlightes the use of electrocorticography (ECoG) and cortico-cortical evoked potentials (CCEPs) for functional mapping of the brain. It discusses how these techniques provide insights into the functional connectivity and organization of neural networks, aiding in the localization of eloquent cortex areas for neurosurgical planning and understanding brain function in both clinical and research settings.

FACEPHENES AND RAINBOWS

In this publication, we studied the activity of a patient’s brain while he looked at different objects. If we stimulated these areas, the patient reported seeing faces or colors, even if he was looking at something else! The results of this study help show how different parts of the brain perform different tasks, and could lead to safer, more precise brain surgery.

READ THE FULL ARTICLE

CORTIQ CORTICAL MAPPING SERVICE

g.tec offers scientific services for cortiQ including mappings in your hospital in the USA, Europe and Japan and our scientific team can analyse the data for you. Furthermore, we can adapt the cortiQ paradigms for your mapping needs.

CONTACT US HERE

FREQUENTLY ASKED QUESTIONS

What brain areas can be mapped with cortiQ?

  • Wernicke’s area (Receptive language)
  • Broca’s area (Expressive language)
  • Auditory cortex
  • Visual cortex
  • Somatosensory system
  • Motor cortex
  • Face recognition
  • Color system
  • Memory function
What scientific publications are available for cortiQ?

Yes. Here is a list of all import publications:

Kanaya, K., Mitsuhashi, T., Kiuchi, T. and Kobayashi, S., 2021. The Efficacy of Intraoperative Passive Language Mapping for Glioma Surgery: A Case ReportFrontiers in neurology, p.1339.

Sanada, T., Kapeller, C., Jordan, M., Grünwald, J., Mitsuhashi, T., Ogawa, H., Anei, R. and Guger, C., 2021. Multi-modal mapping of the face selective ventral temporal cortex–a group study with clinical implications for ECS, ECoG, and fMRI. Frontiers in Human Neuroscience15.

Jiang, T., Pellizzer, G., Asman, P., Bastos, D., Bhavsar, S., Tummala, S., … & Ince, N. F. (2020). Power Modulations of ECoG Alpha/Beta and Gamma Bands Correlate With Time-Derivative of Force During Hand Grasp. Frontiers in Neuroscience14.

Crowther, L. J., Brunner, P., Kapeller, C., Guger, C., Kamada, K., Bunch, M. E., … & Schalk, G. (2019). A quantitative method for evaluating cortical responses to electrical stimulation. Journal of neuroscience methods311, 67-75.

Ritaccio AL, Brunner P, Schalk G. Electrical Stimulation Mapping of the Brain: Basic Principles and Emerging Alternatives. Journal of clinical neurophysiology: official publication of the American Electroencephalographic Society. 2018 Mar;35(2):86-97.

Swift, J.R., Coon, W.G., Guger, C., Brunner, P., Bunch, M., Lynch, T., Frawley, B., Ritaccio, A.L. and Schalk, G., 2018. Passive Functional Mapping of Receptive Language Areas Using Electrocorticographic Signals. Clinical Neurophysiology.

Kapeller, C., Ogawa, H., Schalk, G., Kunii, N., Coon, W.G., Scharinger, J., Guger, C. and Kamada, K., 2018. Real-Time Detection and Discrimination of Visual Perception Using Electrocorticographic Signals. Journal of Neural Engineering, 15(3), 036001.

Schalk, G., Kapeller, C., Guger, C., Ogawa, H., Hiroshima, S., Lafer-Sousa, R., Saygin, Z.M., Kamada, K. and Kanwisher, N., 2017. Facephenes and rainbows: Causal evidence for functional and anatomical specificity of face and color processing in the human brainProceedings of the National Academy of Sciences, p.201713447.

Ogawa H, Kamada K, Kapeller C, Prueckl R, Takeuchi F, Hiroshima S, Anei R, Guger G, Clinical Impact and Implication of Real-Time Oscillation Analysis for Language Mapping, World Neurosurgery, Available online 28 September 2016, ISSN 1878-8750

Tamura Y, Ogawa H, Kapeller C, Prueckl R, Takeuchi F, Anei R, Ritaccio A, Guger C, Kamada K, Passive language mapping combining real-time oscillation analysis with cortico-cortical evoked potentials for awake craniotomy. 2016, Journal of Neurosurgery, 1.

Ritaccio, A., Matsumoto, R., Morrell, M., Kamada, K., Koubeissi, M., Poeppel, D., … & Schalk, G. (2015). Proceedings of the Seventh International Workshop on Advances in Electrocorticography. Epilepsy & Behavior, 51, 312-320.

Christoph Kapeller (2015): Online Control of a Humanoid Robot through Hand Movement Imagination using CSP and ECoG based Features. Presentation.

Kapeller C, Korostenskaja M, Prueckl R, Chen PC, Lee KH, Westerveld M, Salinas CM, Cook JC, Baumgartner JE, Guger C., CortiQ-based Real-Time Functional Mapping for Epilepsy Surgery. J Clin Neurophysiol. 2015 Jun;32(3):e12-22. doi: 10.1097/WNP.0000000000000131

Kapeller C, Kamada K, Ogawa H, Prückl R, Kunii N, Schnürer A, Guger C. P87. Expressive and receptive language mapping using ECoG and ECS. Clinical Neurophysiology. 2015 Aug 31;126(8):e146.

Kapeller C, Schneider C, Kamada K, Ogawa H, Kunii N, Ortner R, Prückl R, Guger C. Single trial detection of hand poses in human ECoG using CSP based feature extraction. In2014 36th Annual International Conference of the IEEE Engineering in Medicine and Biology Society 2014 Aug 26 (pp. 4599-4602). IEEE.

Kapeller, C., Kamada, K., Ogawa, H., Prueckl, R., Scharinger, J., & Guger, C. (2014). An electrocorticographic BCI using code-based VEP for control in video applications: a single-subject study. Frontiers in systems neuroscience, 8.

Prueckl, R., et al. “Real-Time Software for Functional Mapping of Eloquent Cortex Using Electrocorticography.” Biomedical Engineering/Biomedizinische Technik (2013).

Roland, Jarod, et al. “Passive real-time identification of speech and motor cortex during an awake craniotomy.” Epilepsy & Behavior 18.1 (2010): 123-128.

Kapeller, Christoph; Kamada, Kyousuke; Ogawa, Hiroshi; Kunii, Naoto; Prueckl, Robert; Kawai, Kensuke; Schalk, Gerwin; Guger, Christoph. Comparison of ECoG and ECS Language Mapping with High-Density Electrodes. 2013 IEEE Neural Engineering Short Papers No. 0521.

Prueckl R, Kapeller C, Potes C, Korostenskaja M, Schalk G, Lee KH, Guger C., CortiQ – clinical software for electrocorticographic real-time functional mapping of the eloquent cortex. Conf Proc IEEE Eng Med Biol Soc. 2013;2013:6365-8. doi: 10.1109/EMBC.2013.6611010.

Korostenskaja, Milena, et al. “Real-Time Functional Mapping With Electrocorticography in Pediatric Epilepsy Comparison With fMRI and ESM Findings.” Clinical EEG and neuroscience 45.3 (2014): 205-211.

Kamada K, Ogawa H, Kapeller C, Prueckl R, Guger C., Rapid and low-invasive functional brain mapping by realtime visualization of high gamma activity for awake craniotomy. Conf Proc IEEE Eng Med Biol Soc. 2014;2014:6802-5. doi: 10.1109/EMBC.2014.6945190.

Ogawa H, Kamada K, Kapeller C, Hiroshima S, Prueckl R, Guger C., Rapid and minimum invasive functional brain mapping by real-time visualization of high gamma activity during awake craniotomy. World Neurosurg. 2014 Nov;82(5):912.e1-10. doi: 10.1016/j.wneu.2014.08.009. Epub 2014 Aug 7. PMID: 25108295.

Brunner, Peter, et al. “A practical procedure for real-time functional mapping of eloquent cortex using electrocorticographic signals in humans.” Epilepsy & Behavior 15.3 (2009): 278-286.

G. Schalk, E. C. Leuthardt, P. Brunner, J. G. Ojemann, L. A. Gerhardt, J. R. Wolpaw, Real-time detection of event-related brain activity, Neuroimage 43 (2) (2008) 245–249.



Can I use cortiQ in Epilepsy Monitoring Units (EMU)?

Yes, absolutely.  In the first surgery, ECoG electrodes will be implanted, but the functional real-time mappings are performed in the Epilepsy Monitoring Unit. This allows neurosurgeons to modify test paradigms based on individual surgical needs. These tests can be performed repeatedly over a longer period of time. This gives the neurosurgeon more time to plan and optimize the surgical resection better with more detailed information and less preparatory work. cortiQ can greatly reduce the risk of artificial seizures during surgery and cannot produce pain for the patient. It’s less consuming and the risk of damage during surgery can be avoided.

Can I perform intraoperative neuromonitoring (IONM) with cortiQ?

Yes, cortiQ can be used for intraoperative monitoring of the brain. It allows real-time brain mappings in the operating room to identify functional brain regions with high-gamma activity before surgical resection. For example, if pathological tissue is close to the motor area, cortiQ will ask the patient to move arms, feet or even lips. The brain activity patterns produced during these movements will be transmitted in real-time to cortiQ, notifying the neurosurgeon what parts are important for a certain movement and therefore should remain untouched.

How long does the cortiQ brain mapping last?

A mapping that highlights four activation maps usually lasts about 6 min.

Is language mapping possible?

Yes, cortiQ comes with a passive listening paradigm that maps the auditory cortex, including the receptive language area, and it can play back language related paradigms like picture naming tasks and map expressive language related cortical regions.

What is the goal of cortiQ rapid cortical mapping?

Support surgeons’ planning for brain surgeries by providing additional information about functional brain regions.

What useful information can we get with cortiQ brain mapping procedure in addition to the ECS?

The activated neural network is highlighted based on natural behaviors, such as speech or movement. The ECS can only investigate symptoms caused by local dysfunction due to electrical stimulation.

Does the cortiQ brain mapping work with stereo-EEG or depth electrodes? Why show results in real-time?

The mapping procedure works with electrode grids and stereo-EEG recordings with depth electrodes.

How can the brain mapping result be compared with other methods and ECoG analysis?

cortiQ stores the recorded EEG synchronized with the mapping paradigm and provides an importer for MATLAB (The MathWorks Inc., USA). cortiQ mapping results are stored in CSV format for further comparison.

Why show brain mapping results in real-time?

The supervisor can immediately check the quality of the mapping session and stop/change the paradigm at any time. No further offline processing is necessary.

What information is used to perform the brain mapping?

The power of the high-gamma frequency band (60-170Hz) derived from electrocorticographic (ECoG) signals.

How does cortiQ brain mapping work and what do the results mean?

The system compares high-gamma activity in the ECoG during resting and active conditions. Changes in the power of the high-gamma band indicate activated neurons with respect to the electrode position. A group of highlighted electrode groups shows an activated neural network. The system updates the activation map in real-time.

This allows the user to interpret the activation during the experiment and to stop the paradigm anytime. The longer the paradigm lasts, the more noise is eliminated, and hence only task-related electrodes are highlighted. A recommended setup contains around 45s active and 45s resting state per task.

Who will benefit from cortiQ brain mapping procedure?

Neurosurgeons who want to get additional information about the eloquent cortex and other specific regions, and research groups who want to investigate functional regions of the cortex. Neurosurgeons also benefit from cortiQ’s ability to provide maps in real-time instead of hours or days. Patients benefit from reductions in the time needed for mapping, need for additional mapping procedures, chance of accidental seizures resulting from ECS, and the risk of accidental removal of too little or too much brain tissue.

What are the benefits of cortiQ compared to the clinical practice?

Unlike ECS, cortiQ does not produce artificial seizures. CortiQ cannot produce dural pain caused by bad electrode contacts. CortiQ shows the neural areas involved in a given task and allows very fast pre-screening that may be used for planning ECS mapping and surgical removal of affected tissue.
